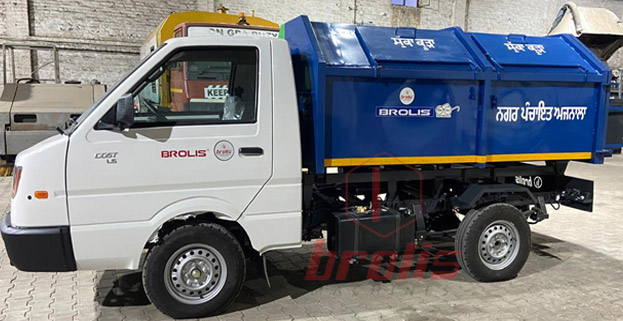

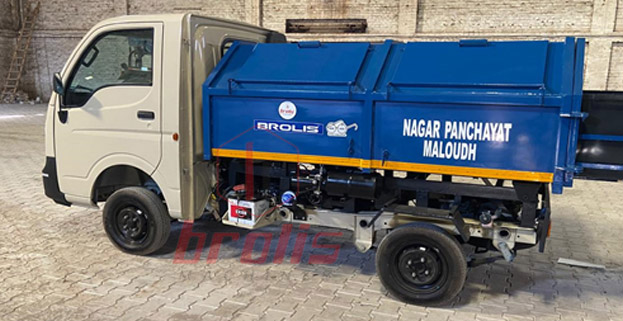

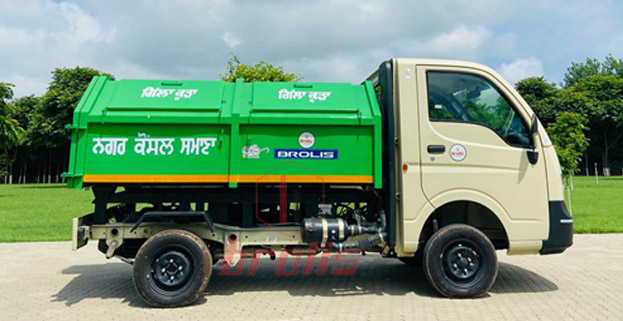

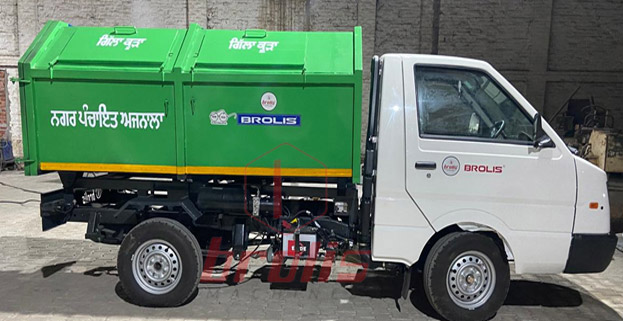

Brolis's garbage truck/tipper is engineered to discharge waste directly into a compactor, ensuring efficient and streamlined disposal at designated dumping sites.These small tipper trucks can dispose garbage at dumping sites
Tipper Specifications
| Type of Tipper- Garbage Tipper (Closed Body with Separate Partition) |
| Category of Vehicle- Light Commercial Vehicle |
| Fuel- Diesel |
| Vehicle Emission- BS-VI (OBD2) |
| Vehicle Engine Cubic Capacity (cc) 1475 |
| Max. Engine Power (KW@RPM) 70 KW@3300RPM |
| Max. Engine Torque (Nm@RPM) 170 Nm@1600-2400 RPM |
| Tipper Container Capacity- 3.3 Cum |
| Tipper Container Material-Mild Steel |
| Warranty- 12 Months 1 Lakh Kms, whichever is Earlier |
| Battery Warranty- 12 Months |
| Gross Vehicle Weight- 2590 Kgs |
| Ground Clearance- 175 mm |
| Wheel Base- 2350mm |
| Type of Steering- Power |
| Tipping Angle- 45 Degree |
| Main Frame Thickness-3mm |
| Body Plate Thickness-1.6mm |
| Tipping Hydraulic Jack- Main Engine/Electrical Battery Operated |
| Paint- Automotive |
| TECHNICAL SPECIFICATION CAN BE CHANGED AS PER CHASSIS MODEL & CAPACITY |
WET & DRY GARBAGE 2.5 Cu.M
| Type of Tipper- Garbage Tipper (Closed Body with Separate Partition) |
| Category of Vehicle- Light Commercial Vehicle |
| Fuel- Diesel |
| Vehicle Emission- BS-VI |
| Vehicle Cubic Capacity (cc) 702 |
| Max. Engine Power - 3600RPM |
| Max. Engine Torque - 2000 RPM |
| Tipper Container Capacity- 2.5 Cum |
| Tipper Container Material-Mild Steel |
| Warranty- 12 Months 1 Lakh Kms, whichever is Earlier |
| Battery Warranty-12 Months |
| Gross Vehicle Weight-1685Kgs |
| Ground Clearance-160 mm |
| Wheel Base-2100mm |
| Type of Steering- Power |
| Tipping Angle- 45 Degree |
| Main Frame Thickness-3mm |
| Body Plate Thickness-1.6mm |
| Tipping Hydraulic Jack- Main Engine/Electrical Battery Operated |
| Paint- Automotive |
| TECHNICAL SPECIFICATION CAN BE CHANGED AS PER CHASSIS MODEL & CAPACITY |
